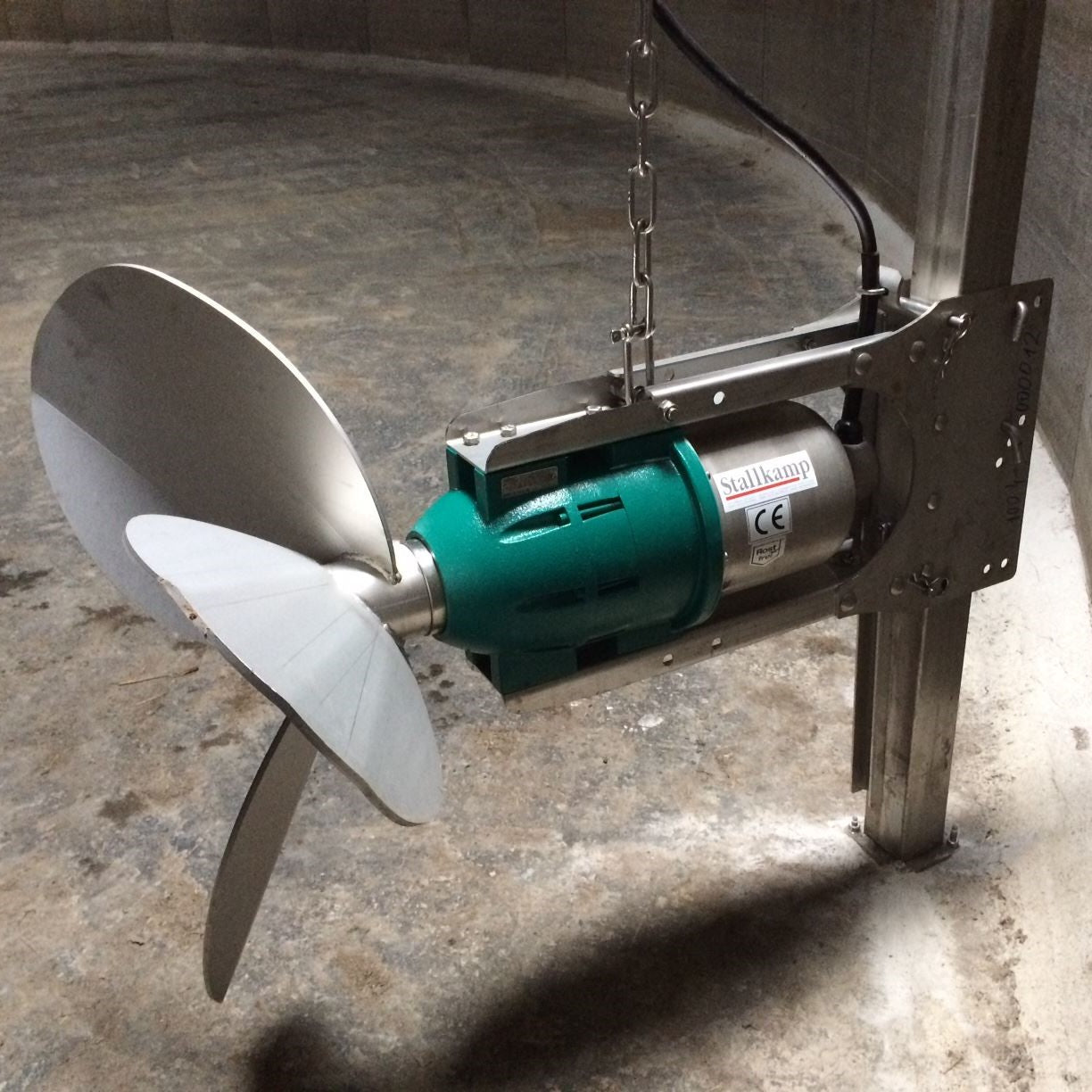

TMR 3M submersible motor mixer

Electric motors 11.0 + 17.0 kW

• Three-phase motors 400 V, 50 Hz, 1450 rpm.
• Protection class IP 68 / insulation class F = 155 °C
• Thermal monitoring for each phase as overheating protection
• Motor housing made of stainless steel V4A 1.4404
• Gearbox housing and motor cover made of GG material coated with 2-component plastic paint
• Planetary gear with propeller speed 128 rpm
• Sealing: highly wear-resistant mechanical seal as standard
• Electric cable with cast screw connection, with swelling bodies in the longitudinal direction of the cable as moisture protection, special PU outer sheathing
• Sliding guide with depth stop made of V2A 1.4301 including adjustment option: 7° swivel up, 7° swivel down
• Stirring blade version made of stainless steel V2A 1.4301

The agitator is intended for the following applications:

• Stirring or homogenizing biomass in biogas plants
• The agitator is designed for a variety of applications where a high flow rate is required in relation to the power consumption
• Basically, the stirring effect depends on the density and viscosity of the liquid as well as the contents and shape of the container. Larger containers may require more than one agitator

Advantages:

• Immersion depth individually adjustable
• Liquid jet and flow direction can be adjusted as required
• High stirring performance
• Environmentally friendly and economical work
• Optimal homogenization of the media
• Good value for money
• High quality from our own production
• Diverse range of accessories
